Earth Electrode U-Clamp

Standard sizes accommodate rod diameters typically ranging from 16 mm to 50 mm.

Delivery Scope based delivery

Revisions 0

Delivery Mode Remote / On-site

Overview

Service Details

BDT 320.00 / pcs Scope based

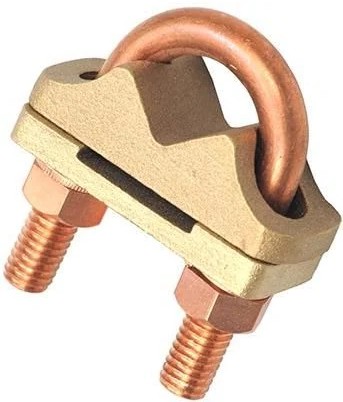

An Earth Electrode U-Clamp, also known as a U-Bolt clamp, is designed to securely connect earth rods or rebar to conductor tapes in a lightning protection system, providing a mechanically strong, corrosion-resistant, and low-resistance path to ground.

U-Clamps are critical components in earthing systems used for Lightning Protection Systems (LPS).

Their primary purpose is to:

Connect flat copper tapes or stranded conductors to earth electrodes or reinforcing bars.
Ensure a low-impedance path for lightning current safely to the earth.
Offer mechanical stability to maintain the connection over long periods without loosening.
Facilitate periodic testing or maintenance without permanently altering the installation.

In essence, they help secure the connection between the lightning down-conductor system and the grounding electrodes, minimizing resistance and potential corrosion effects.

Materials and Construction

High-quality U-Clamps are manufactured from materials such as:

High-strength copper alloy for excellent conductivity and mechanical strength.
Phosphor bronze or gunmetal for certain fittings.
Stainless steel (StSt, V4A) in corrosive or outdoor environments.

Some clamps include additional plates for clamping tape without drilling if needed. These materials are chosen for mechanical toughness, corrosion resistance, and reliability under extreme weather conditions.

Standards and Specifications

U-Clamps for lightning and earthing applications comply with international and national standards:

IEC/BS EN 62561-1 – Requirements for connection components in LPS.
BS 7430 – Code of practice for protective earthing.
UL 467 – Electrical grounding and bonding standard (for certain clamps).

Standard sizes accommodate rod diameters typically ranging from 16 mm to 50 mm, connecting with conductors or tapes of various widths and thicknesses. The clamps are designed for single or double plate configurations depending on the installation requirement.

Installation and Applications

Connect earth rods, ground mats, or reinforcing bars to copper tapes or conductors.
Suitable for residential, commercial, and industrial LPS installations.
Can be used in vertical and horizontal configurations, including concrete-embedded electrodes.
Tightening torque is typically 12 Nm to ensure secure contact without damaging conductors.
U-Clamps allow future maintenance or testing without requiring disconnection of permanent
components.

Features

Corrosion-resistant to withstand soil and environmental factors.
High mechanical strength to prevent loosening under vibration or earth movement.
Versatile sizing for different rod diameters and conductor widths.
Compliance with international standards ensures safe and efficient discharge of lightning currents.

The Earth Electrode U-Clamp is an essential LPS component that ensures a robust, low-resistance connection between ground rods or rebar and earthing conductors, fulfilling both electrical and mechanical safety requirements in lightning protection installations. Using quality materials and adhering to IEC/BS EN and BS 7430 standards maximizes durability and functional reliability.

note: LATEST UPDATE April 15, 2026. CONTACT US FOR CURRENT PRICES
